Nauticam has unveiled their NA-Z5II housing for the new Nikon Z5 II, the second iteration of the Japanese company’s entry-level full-frame mirrorless camera. The Z5 II features a 24MP backside-illuminated sensor paired with Nikon’s latest EXPEED 7 processing engine, promising class-leading low-light performance and 11fps continuous shooting with the manual shutter (up from just 4.5fps on the Z5). On the video side, the Z5 II can shoot both 4K/30p and Full HD/120p with no crop.
Designed to accommodate both Z-mount lenses and F-mount lenses (via the FTZ/FTZ II adapter), Nauticam’s housing features important controls ergonomically positioned next to the integrated handles. As you’d expect, there’s full compatibility with Nauticam’s extensive range of water-contact optics, such as the FCP-1, WWL-C, SMC-3, CMC-2, and MFO-3. Both optical and electrical flash triggering options are available, while the M16 port allows the installation of an HDMI bulkhead for use with monitor/recorders such as the Atomos Ninja V or monitors such as the new Nauticam T7 HD UltraBright.
The NA-Z5II is priced at $3,800 and can be pre-ordered now from retailers such as Backscatter.
When purchasing underwater photography equipment like the products mentioned in this article, please support DPG by supporting our retail partner—Backscatter.com.
PRODUCT INFORMATION
INTRODUCING NA-Z5II
The Nikon Z5II Camera
The Nikon Z5II, a refinement of its predecessor, boasts enhanced processing speed, subject recognition autofocus, and exceptional low-light performance. Equipped with a full-frame FX-format 24.5MP BSI CMOS sensor and an EXPEED 7 image processor, the Z5II delivers remarkable image quality.
The AI-driven autofocus, derived from the Z9 and enhanced by deep learning technology, now employs sophisticated Subject Detection for nine distinct subject types. This ensures precise focus and tracking, even in challenging lighting conditions.
The EXPEED 7 processor also enables Pre-Release Capture, a feature that captures up to one second prior to shutter release at an impressive 30 frames per second. This allows photographers to capture the precise moment and avoid missed shots.
In addition to its impressive imaging capabilities, the Z5II has been enhanced to deliver exceptional video recording performance. It supports UHD 4K video recording at up to 60 fps and Full HD recording at up to 120 fps, enabling videographers to capture dynamic and immersive footage.
Key Features
- 24.5MP Full-frame BSI-CMOS Sensor
- EXPEED 7 Image Processor
- N-RAW (12 bit), H.265/HEVC (8 bit/10 bit), H.264/AVC (8 bit)
- Full HD 120p for Slow Motion Video
- Up to 30 fps JPEG Shooting
- Class-leading autofocus detection down to –10EV
- Automatic detection of 9 subjects
- 7.5 stops of built-inimage stabilization
- 2 SD Memory Card Slots

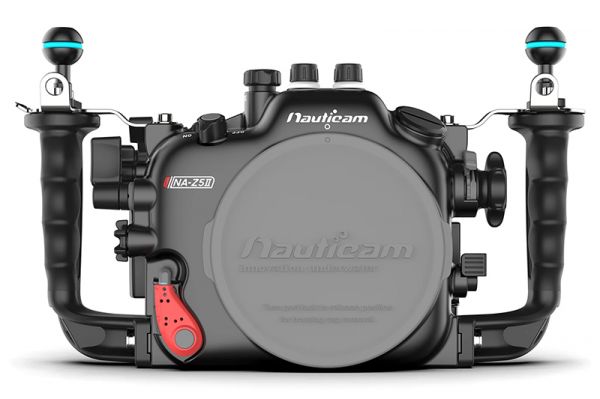

THE NA-Z5II HOUSING
The NA-Z5II underwater housing upholds Nauticam’s dedication to innovation. Essential controls are conveniently accessible via ergonomic handles, facilitating an efficient setup that optimizes time spent in the water and minimizes time spent on rig maintenance. The N120 port system accommodates both Nikon Z Mount and legacy F Mount lenses via the FTZ/FTZ II adapter. Nauticam’s extensive range of ports and in-house corrective optics complement the NA-Z5II’s capabilities. When equipped with an accessory vacuum valve, the integrated vacuum check and leak detection system provides continuous updates on the housing’s watertight integrity. A vacuum system reset switch, located beneath the tray, eliminates the necessity to open the back of the housing during lens or port changes. The optional NA-Z5II LCD window for Full Frame viewfinders enables the utilization of Nauticam Full Frame viewfinders for enhanced viewing. The NA-Z5II is capable of supporting additional mounting with 1/4-20, M10, and M5 holes on the top for monitors and lighting, while the bottom accepts the 25218 Tripod Mounting Ball set. The NA-Z5II is ready for customization to meet your specific shooting requirements.
Nikon F-Mount & Z-Mount Lens Support
The Nauticam NA-Z5II is designed to accomodate both Z-Mount and F-Mount lenses. With the new compact design of the NA-Z5II housing, there are newly released zoom and focus gears that will drive off the main zoom/focus knob on the housing. There is also the 22225 N120 FTZ Adapter ER 25 with Knob which will allow you to use previous generation Z-Mount zoom and focus gear along with F-Mount lenses and their corresponding gears. For complete compatibility details, you can view the NA-Z6III/Z5II Port Chart.
Premium Professional Optics
Nauticam’s professional water-contact optics deliver the highest underwater image quality. The FCP, WACP, and WWL lines enhance wide-angle, while the MFO and SMC offer exceptional macro and super macro capabilities. The EMWL allows you to shoot macro, wide-angle, or combine the styles for unique images.
Mission Control
In true Nauticam fashion, essential controls are placed as close to the handles as possible, making these housings the most intuitive and user-friendly available. Our engineers strategically position controls where they’re needed most, rather than simply near the corresponding buttons on the camera. Dials feature rubberized finger grooves, and levers are designed for smooth operation.
Integrated Vacuum Check & Leak Detection Electronics
The Nauticam vacuum check and leak detection system is shipped with NA-Z50II as standard equipment. Combined with an optional accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.
Flash Triggering
Flash triggering on the Nikon Z5Il in the NA-Z5II is available via either optical or electrical triggering.
Optical Triggering
- 26350 Flash Trigger for Nikon (Compatible with NA-D5/D500/D850)
- 26352 Manual Flash trigger for Nikon II (for Z6III)
- 26601 HSS TTL Converter for Nikon (NA-Z8/Z9/Z6III)
Electrical Triggering
WHAT’S IN THE BOX
- NA-Z5II Housing
- N120 Port Cap
- 2x Optical Bulkhead Caps
- 2x Handles with mounting balls and 2x handle brackets
- Pre-installed Leak Detection & Moisture Alarm with CR-2032 Battery
- Spare Main Houisng O-ring, O-ring remover and Nauticam Lubricant
- Set of Allen Keys
- Manual Instruction Card
- Padded Housing Bag and Shoulder Strap
RECOMMENDED ACCESSORIES
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using lanyard)
- 25228 M5 strobe mounting ball for housing
- 25625 M16 Vacuum Valve II (Pushbutton Release)
- 28130 Hand Strap for 28113
- 28123 Pair of handles – size S (10mm closer to housing)
- 25413 27cm lanyard with 2 snap hooks
- NA-Z5II LCD window for Nauticam Full Frame viewfinder
- 32212 Nauticam Full Frame Straight Viewfinder 40 / 0.8:1
- 32214 Nauticam Full Frame Angle Viewfinder 40 / 0.8:1
- 87213 Reverse Angled Viewfinder for EMWL 40 / 0.8:1
- 87214 Reverse Straight Viewfinder for EMWL 40 / 0.8:1
SURFACE USB-PD POWER BANK
HDMI OUTPUT
Required accessories for HDMI 1.4 Cable System
- 25033 Standard HDMI bulkhead with M16 thread
- 26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
- 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera)
Compatible Monitor Options
- 16612 Nauticam 7” T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables) 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads) *25047 is Required for use with 16612 monitor housing
- 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2″ Monitor with HDMI 1.4 input *17927 includes 25033, 25038, 25100
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V housing in 0.75m Length (for connection from Ninja V housing to HDMI bulkhead) *25082 is Required for use with 17922 monitor.
MONITOR/TRIPOD MOUNTING SYSTEM
- 17951 Nauticam Atomos Shogun housing mounting system
- 17952 Nauticam Monitor Housing Mounting Adaptor
- 17954 Tripod plate for NA-A7S and NA-GH4
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
- 17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
WET LENSES
Macro
- 81202 Super Macro Convertor 2 (4x Magnification)
- 81203 Super Macro Convertor 3 (2.3x Magnification)
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
- 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
- 81501 Mid-range Focus Optimizer 1
- 81503 Mid-range Focus Optimizer 3
Wide-angle
- 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
- 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
- 85204 Wide Angle Conversion Port – 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
- 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
- 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring – (WACP-1B)
- 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses
Macro to wide-angle
- 87302 EMWL Set #2 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
- 87202 EMWL Focusing Unit #2 (for Canon FF 100mm & APS-C 60mm)
- 87211 EMWL 150mm Relay Lens
- 87212 EMWL Angled Relay Lens
- 87221 EMWL 60° Objective Lens
- 87222 EMWL 100° Objective Lens
- 87223 EMWL 130° Objective Lens
- 87226 EMWL 160° Objective Lens
WET LENS ACCESSORIES
- 25101 M67 flip diopter holder for M67 macro ports
- 25108 M67 Double Flip Holder for M67 Macro Ports
- 83250 M67 to Bayonet Converter II
- 83214 Bayonet Mount Adaptor for SMC/CMC
- 87501 Flip Holder for EMWL
- 87512 Shade for 130° Objective Lens
- 87513 Shade for 100° Objective Lens
- 87519 Shade for 160° Objective Lens
- 87518 Strobe Mounting Brackets for EMWL Relay Lens
